LK-HG-3 全自動熱熔噴膠機

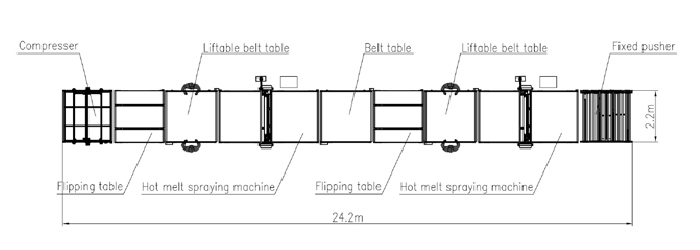

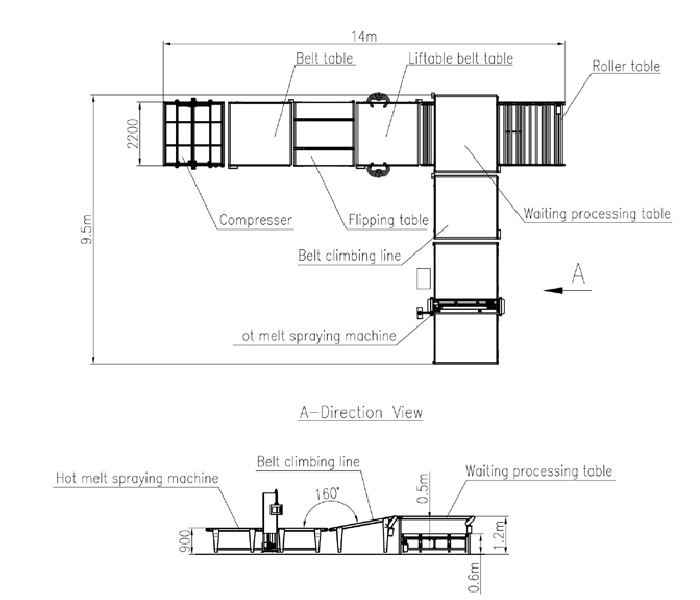

Drawing產品圖
| Advantages機械描述及特性 |
|

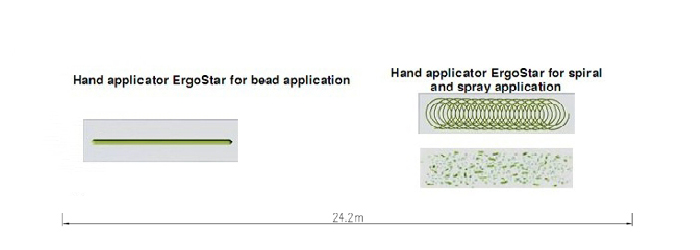

用于床網與海綿、墊料及面料之間的粘合；設有熱熔膠熔器，與旋噴珠相互作用。 噴頭震蕩左右擺動，進而噴灑涂布粘合劑； 提供可調噴膠量操作；以及硅疊層輸送帶清潔輥調節速度，無需人手調節定位。 Designed to create foam encased units and/or adhere quilted mattress panels.Features a hot melt adhesive with either a spin-spray or bead application.Gluing heads oscillate left and right while applying adhesive and provide controllable application of adhesives,adjustable speed gluing application,and silicone laminated conveyor or belts with cleaning rollers,without manually adjusting and positioning. 1. 采用 PLC 控制，可連接床墊生產流水線；PLC control system,can be connected mattress production line; 2. 采用瑞士樂佰得熔膠系統，噴膠落點準確、均勻有力；Advance Switzerland Robatech Brand adhesive melter; 3. 皮帶輸送機導板可確保準確到位；Conveyor belt guides ensure accurate tracking; 4. 人體工學設計，操作方便；Ergonomic design and operator friendly; 5. 減少材料損耗，有效地降低生產成本；Low loss,low cost |
| Specifications主要技術規格 |
|
||||||||||||||||||||
